Thought I’d share a little project I’ve been working on.
I bought an old Echo Show 8 gen 1 and had Claude help me take care of the jailbreak. Day to day I run Claude on a Pi so it read the instructions and tweaked the jailbreak so that it could run it by itself on Linux. I was a bit worried about making mistakes in the jailbreak process, but with Claude’s help I just plugged the Echo into the Pi and it was super simple to do.
Next was defining what I wanted the display to actually do. These days I tend to start my Claude builds by creating a requirements markdown file, so I defined everything I wanted to display and control and also included a few notes about the architecture, for instance I wanted all processing to take place within Home Assistant and on the Pi, the Echo should just be a ‘dumb’ kiosk display.
Once I’d given that all to Claude I had it figure out the build, work out what data it already had from Home Assistant and which APIs we’d need to tap into to pull in additional data. With that all in place I told it to give me a handoff package so that I could do all of the design work in Claude Design.
This was a really big thing for me, because I really wanted to avoid the “information overload” dashboards that I’ve seen all over the internet, I also wanted the Echo to provide glanceable information, with the right headline information on screen at the right time. Claude design I think was the key to this project being a success for me because I was able to define a design language that remained consistent throughout the dashboard.
With all of that in place, Claude built the dashboard and got it up and running and since then it’s just been tweaks here and there and removing any “Claudish” that managed to make it onto the dashboard.

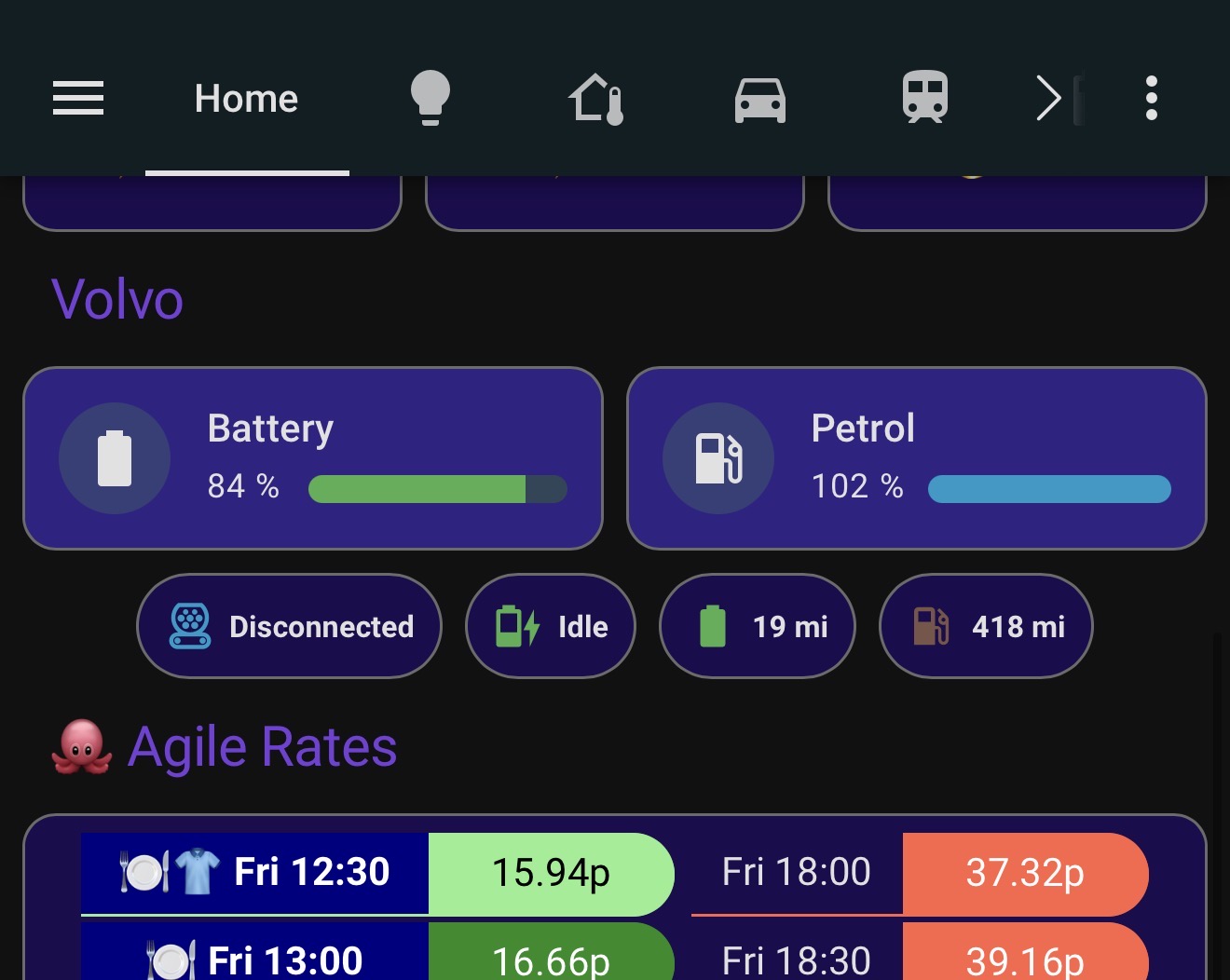

I’ve included a few photos of what I’ve built, not all of this data is real, some of it is mocked.
Features:
Commute tracking - this uses the UK National Rail API to check not just my route into the office for delays, but also the previous journey each train will do before terminating and returning to catch delays before they’re even officially announced. This displays automatically on office days.

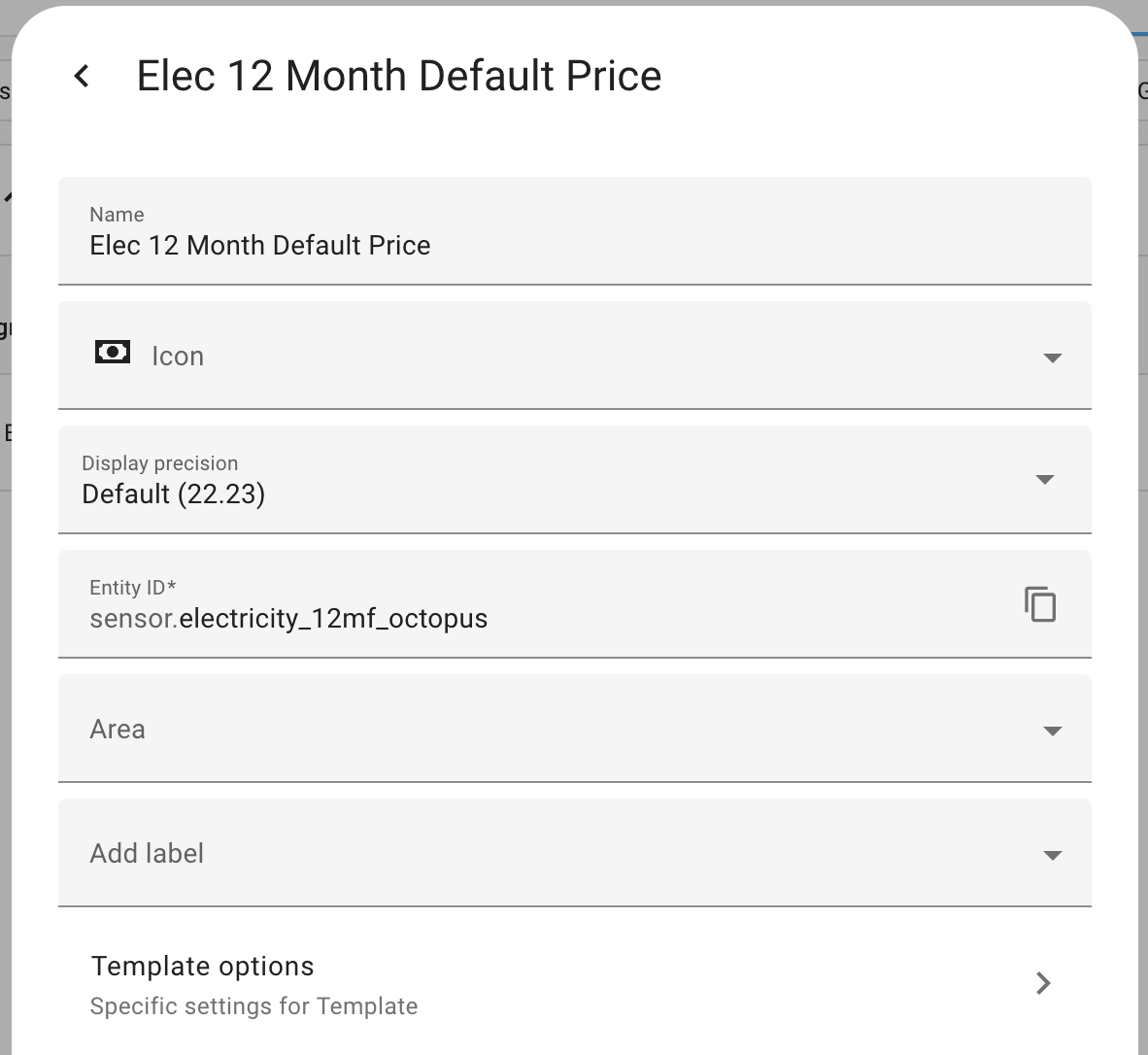

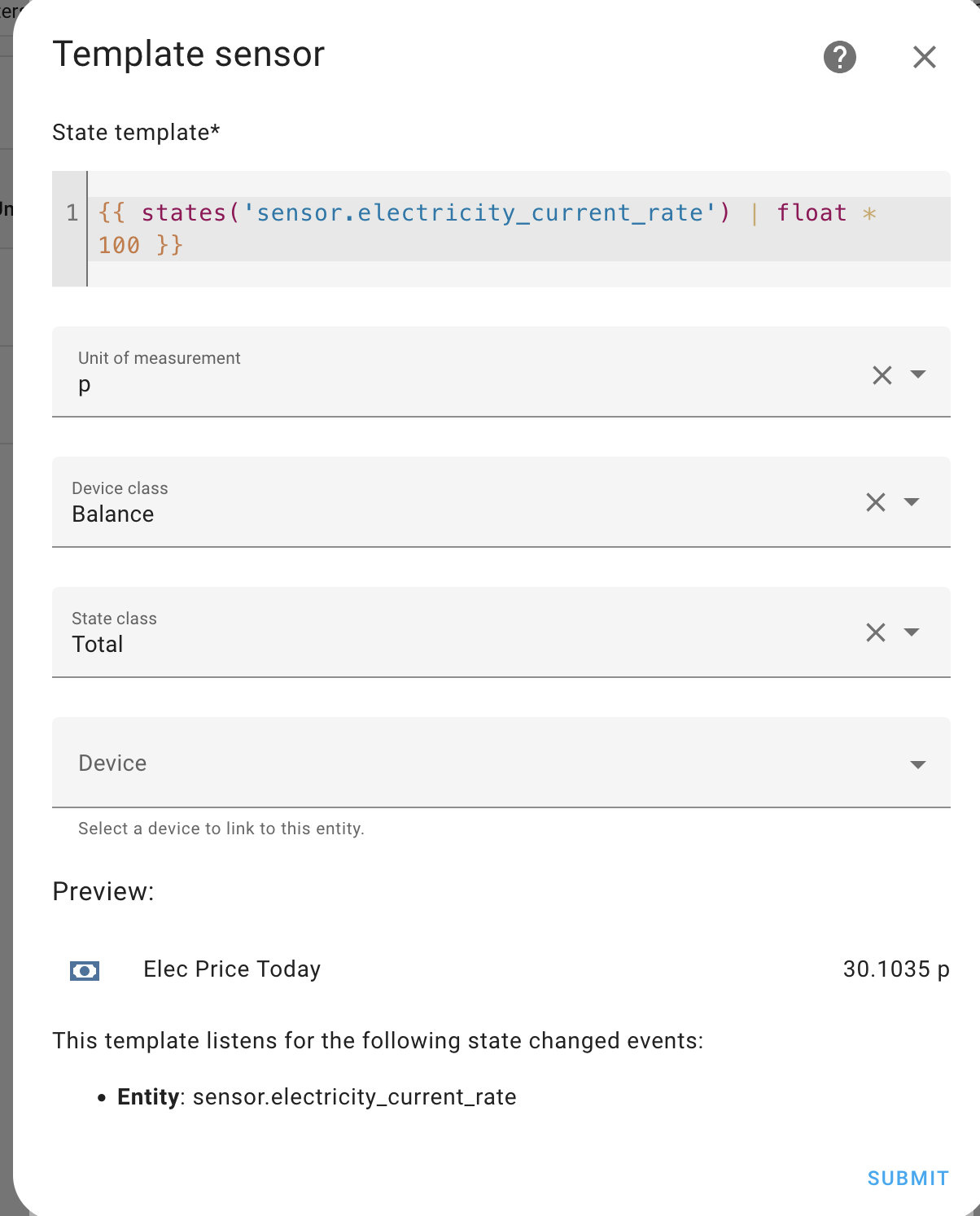

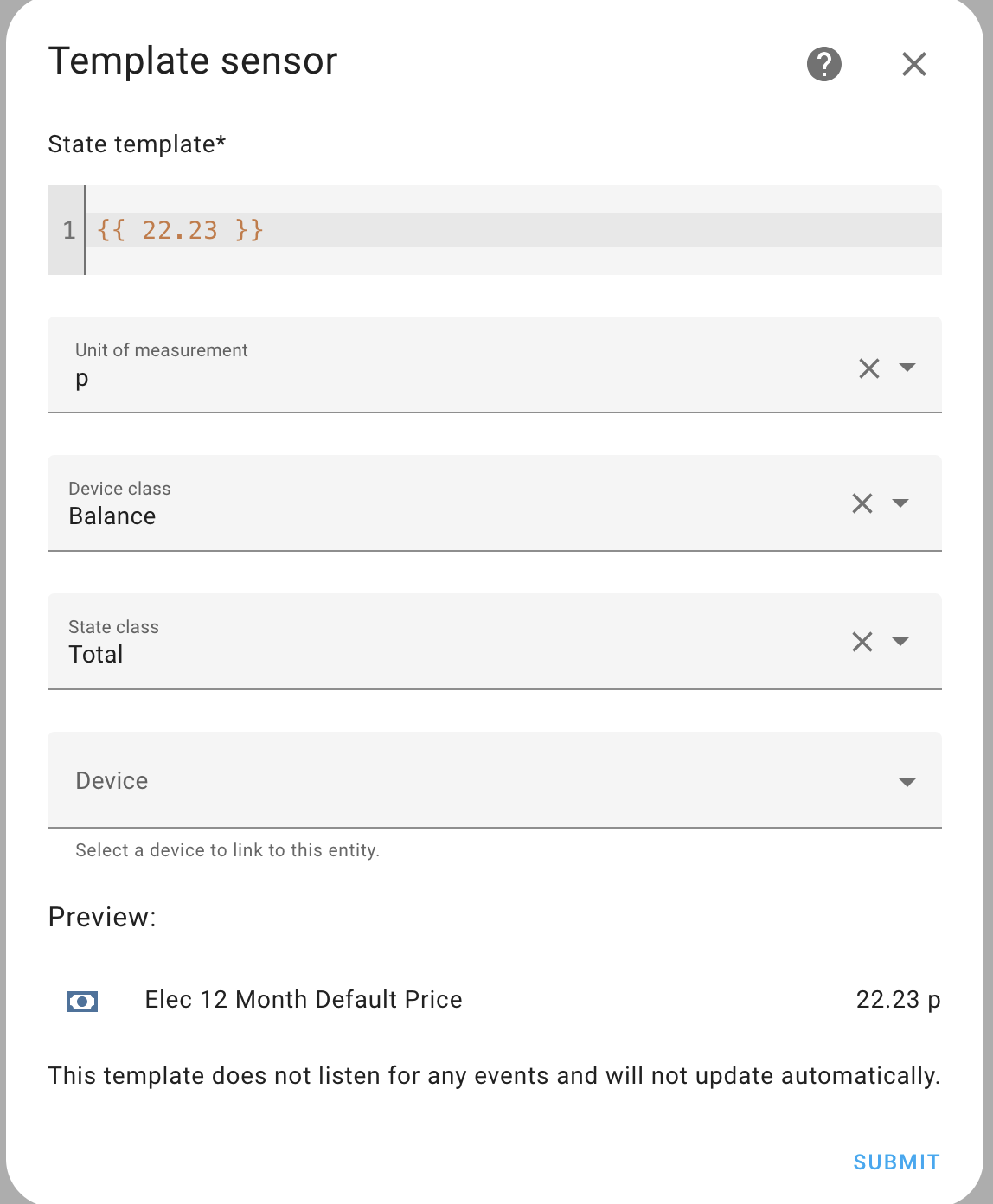

Octopus Agile rates - This helps me track the current and upcoming prices. I’ve also built in overall use and bill tracking, so I’ve been able to dump my Smart Meter‘s IHD.
On the way home - tracks both mine and my wife’s journeys home from work using our locations in Home Assistant. My wife drives so that’s fairly simple, but I take a train with multiple route options, so the system with the help of a few Home Assistant zones attempts to work out which train I’m on and when I’ll be home. This displays automatically when we leave work.
Recipes - I have a few recipes I was serving from an internal site previously, I can now display these on screen whilst I cook.
Media - catches when music is playing on my HomePods or Apple TV and displays controls. Automatically displays when needed.
Light & Dark Themes - Automatically changes based upon time of day
